Mechlovin' Zed60 PCB

$42.00
$42.00
Sold out
In Stock and Ready to ship

NOTES:

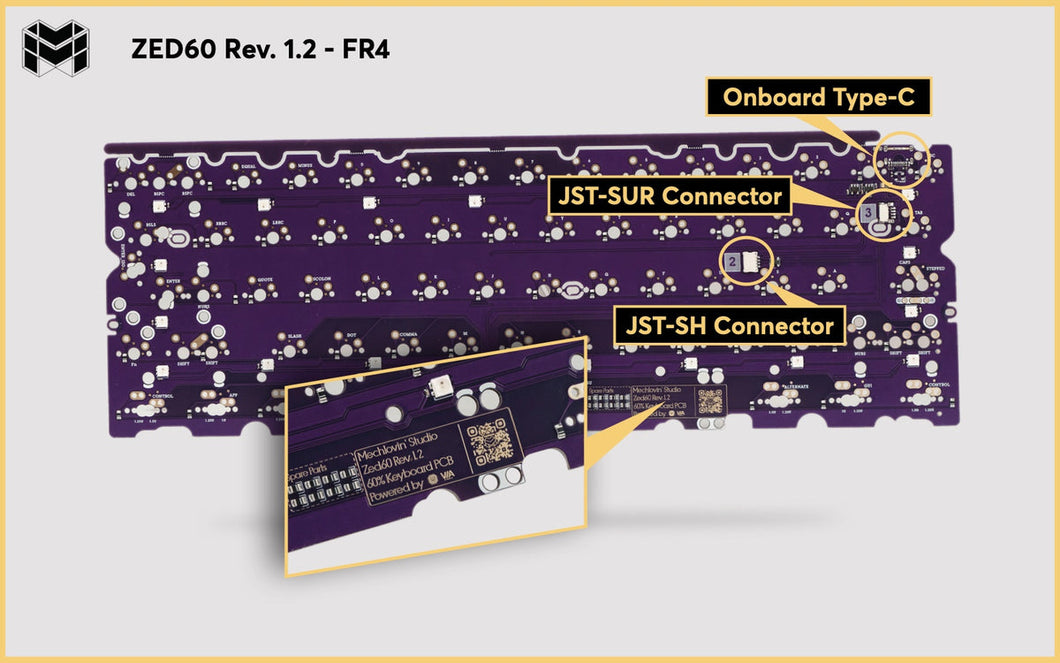

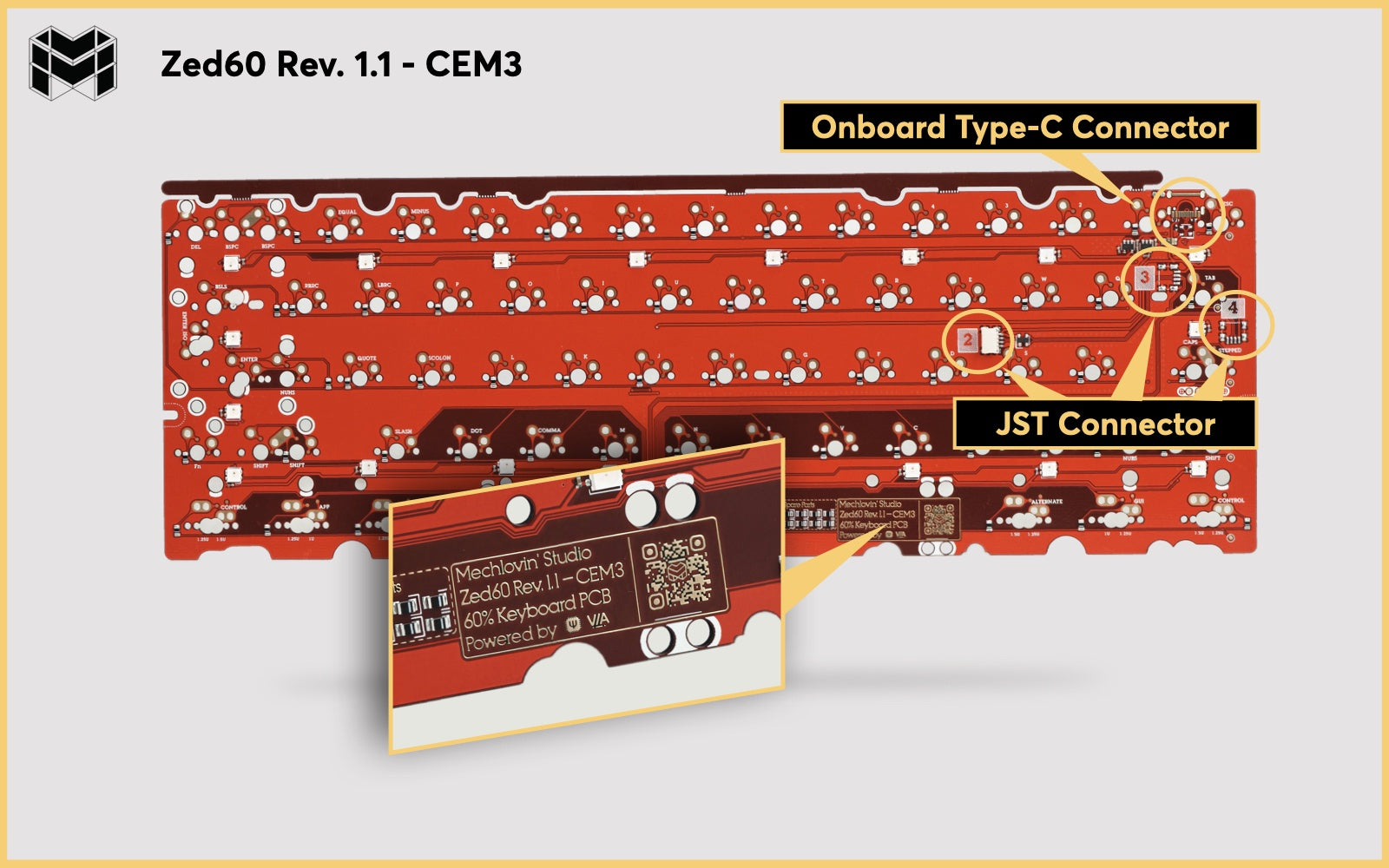

  • The Zed60 supports 2 different JST connector positions. Please see buying options.
  • The on-board USB type C is positioned to fit with the R1 Unikorn & other boards with similar USB cutout
  • Please choose the on-board USB variant for R1 Unikorn; and JST connector variants for R2 Unikorn
  • You can choose to purchase daughterboard & JST cable add-ons.

SPECS:

  • Compatible with Unikorn R1 (with on-board USB Type-C) and R2 (with JST connector)
  • Possible compatibility with a variety of non-tray mount 60% boards
  • Powered by APM32F103 MCU
  • Programmable via QMK and VIA
  • RGB Underglow
  • PCB thickness: 1.6mm
  • No flex cuts
  • ESD protection
  • PCB color: Purple solder mask with immersion gold finish
  • Supported layout
  • Resource Page
