Mechlovin' Zed65 PCB – cbbplanet

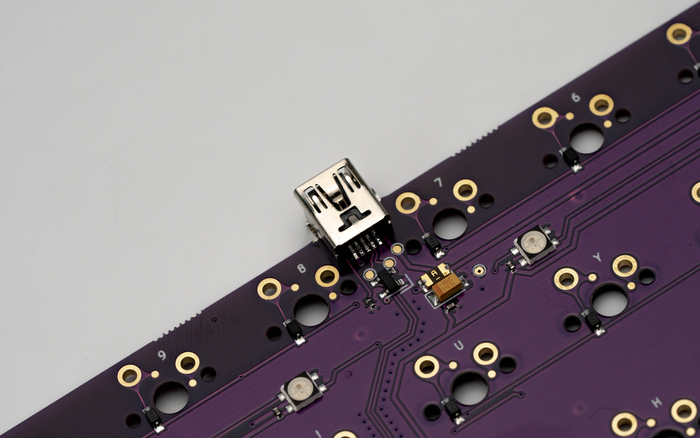

Mechlovin' Zed65 PCB
JST Position 2
USB-C
Mechlovin' Zed65 PCB
Mechlovin' Zed65 PCB
JST Position 1
  • Load image into Gallery viewer, Mechlovin' Zed65 PCB
  • Load image into Gallery viewer, JST Position 2
  • Load image into Gallery viewer, USB-C
  • Load image into Gallery viewer, Mechlovin' Zed65 PCB
  • Load image into Gallery viewer, Mechlovin' Zed65 PCB
  • Load image into Gallery viewer, JST Position 1

Mechlovin' Zed65 PCB

Regular price
$45.00
Sale price
$45.00
Regular price
Sold out
Unit price
per

In stock and ready to ship
NOTES:
  • Please read the specs carefully. Contact Mechlovin team if you need support in choosing the correct PCB variant.
  • This supersedes the Kay65. Top-right blocker LEDs are removed due to unpopularity.

SPECS:

  • Compatible with a variety of 65% boards with centered bottom-sided USB Type-C (Dolinger 2017; Dolinger RE; Exclusive E6.5...); top-sided USB-C (TGR 910ME; Perryworks MC65) and Mini-USB connector (TGR 910; Exent)
  • JST connector variants available. Position 1 is for Merisi Sessantacinque and Ori CLS-2 (our past commission projects). Position 2 is designed with the Iron165 in mind.
  • Powered by APM32F103 MCU
  • Programmable via QMK and VIA
  • Pre-soldered underglow RGB
  • PCB thickness: 1.6mm
  • ESD protection
  • PCB color: Purple solder mask with immersion gold finish
  • Supported layout
  • Resource Page

    For more info and questions, please reach out to Mechlovin' team directly: https://mechlovin.studio/products/mechlovin-zed65-65-pcb
